Your Location: Home -> Products -> Deep Well Pump |
|
|

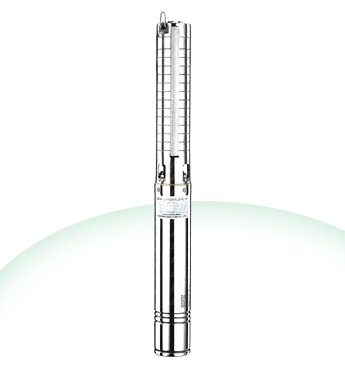

4SP 8 (4" Submersible Pumps) |
![](pro/2011718156275.jpg) |
![](images/arrow03.gif) |
Applications: |
|
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications, for garden use and irrigation. |
|
|
![](images/arrow03.gif) |
Operating conditions: |
|
Water temperature up to 55¡æ.
Minimum internal diameter of well:102mm.
Maximum immersion depth:40m. |
|
|
![](images/arrow03.gif) |
Motor: |
|
(1)Full obturated screen motor
(2)Rewind able motor
Three-phase:230V¡À10%(220-240V)
Three-phase:440V¡À10%(380-415V)
Single-phase:230V¡À10%(220-240V)
Control box with capacitor, on request. |
|
![](images/arrow03.gif) |
Special features on request: |
|
Other voltages. Frequency 60HZ. Other mechanical seal. The length of cable over than 40m. Cable gland with cable fasteners. |
|
|
![](images/arrow03.gif) |
Warranty:1 year |
|
(as per our general sales con ditions). | ![](/pro/edt/
