Your Location: Home -> Products -> Deep Well Pump

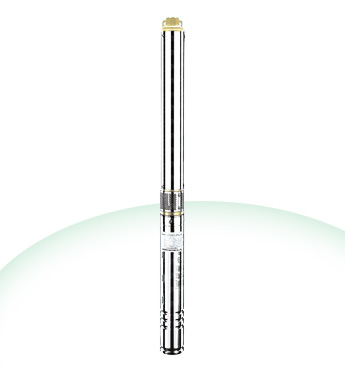

3SD 1 (3SD 1)

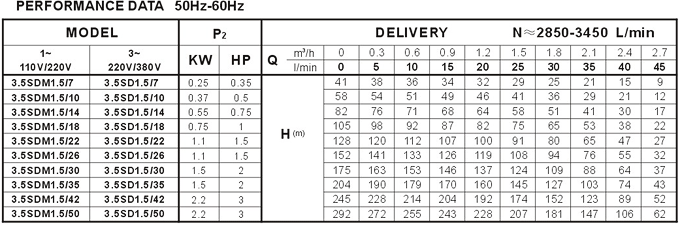

Technical data:
  -Pump
Qmax:2.8(m3/h)
Capacity from 1 to 2(m3/h)
Total head from 128 to 19(m)

-Motor:
  Power:0.52 to 1.1 kW(Single phase)
Insulation class:B
Protection grade:IP58

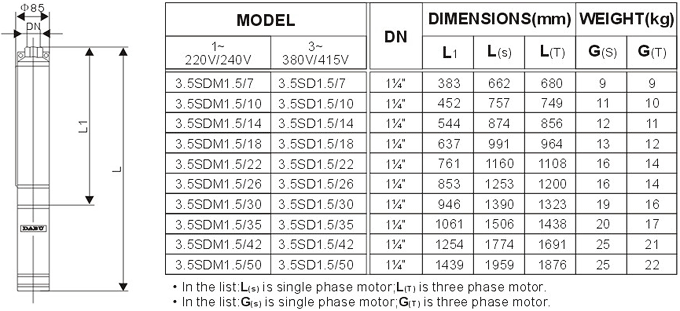

Maximum diameter:76mm
Highest temperature of liquid:35
