Your Location: Home -> Products -> Deep Well Pump

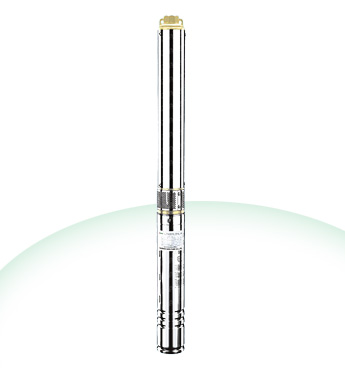

3.5SD 1.5 (3.5SD 1.5)
Applications:
  For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications, for garden use and irrigation.

Operating conditions:
  Maximum fluid temperature up to 35.
Minimum sand content:0.25%.
Maximum immersion:80m.
Minimum well diameter:3.5".

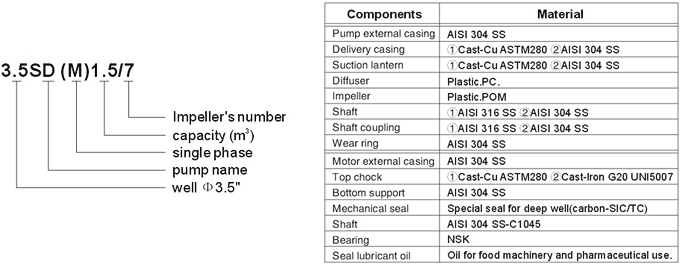

Motor and pump:
  Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:380V-415V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed

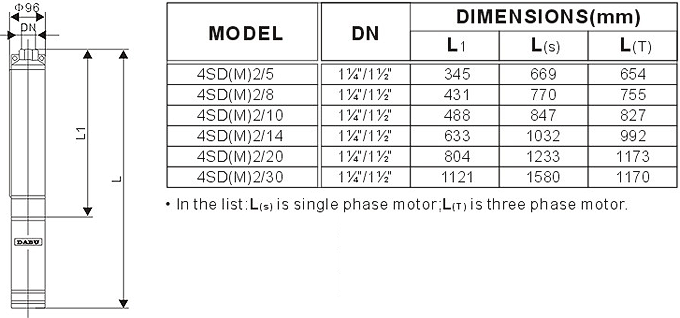

NEMA dimension standards

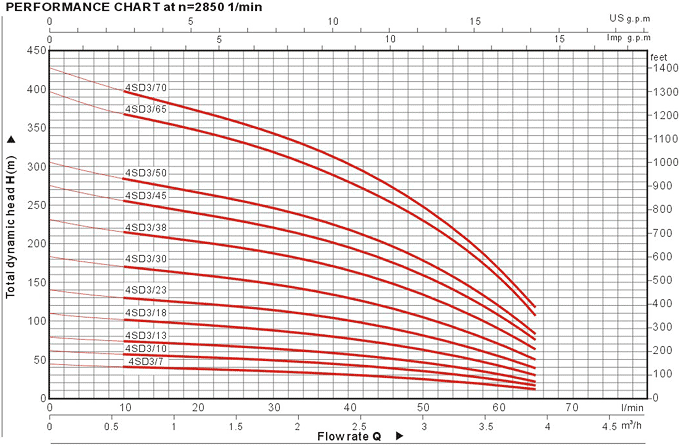

Curve tolerance according to ISO 2548

Warranty:1 year
  (as per our general sales con ditions).
