 Your Location: Home -> Products -> Deep Well Pump |
|
| |

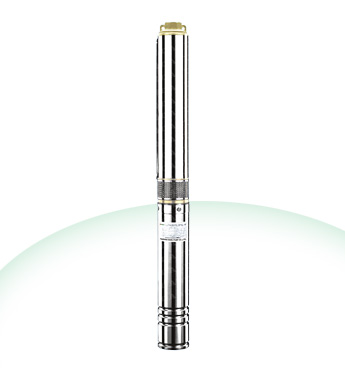

4SD 4 (4" Submersible Pumps) |
 |
 |
Applications: |
| |
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications, for garden use and irrigation. |
| |
|
|
Operating conditions: |
| |
Water temperature up to 55¡æ.
Minimum internal diameter of well:102mm.
Maximum immersion depth:40m. |
| |
|
|
Motor: |
| |
(1)Full obturated screen motor
(2)Rewind able motor
Three-phase:230V¡À10%(220-240V)
Three-phase:440V¡À10%(380-415V)
Single-phase:230V¡À10%(220-240V)
Control box with capacitor, on request. |
|
|
Special features on request: |
| |
Other voltages.
Frequency 60HZ.
Other mechanical seal.
The length of cable over than 40m.
Cable gland with cable fasteners. |
| |
|
|
Warranty:1 year |
| |
(as per our general sales con ditions). |
|
|
