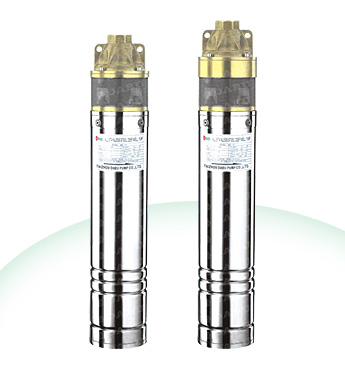

4SKm (4"Submersible Pumps)
  Qmax: 2.4(M3/h)
Cable Length:20m.
Capacity from 0.5 to 1.5 (M3/h)
Total head from 79 to 27 (m)
Highest temperature of liquid: 40

Continuous Service.
Power: 1Hp (Single phase)
             1.5Hp (Single phase)
Insulation class: B
Protection grade: IP58

Main uses
  For 4" wells.
Pumping clear water to: Detached
houses-country houses and farms-Cottages.
Moving water in fountains.
Rain irrigation.
Feeding pressure systems.
Filing and emptying tanks.

Structure features
  Shaft, jacket and hydraulics in stainless steel.
Brass impeller.
Built -in non -return valve.
Thermoplastic parts.
Oil-cooled motor with compensating diaphragm.
Graphite mechanical seal protected by sand proofing.
4SKm 100 parts are non-toxic and non-polluting.
Thanks to special structure features, both installation and maintenance of 4SKm 100 are fast and easy.

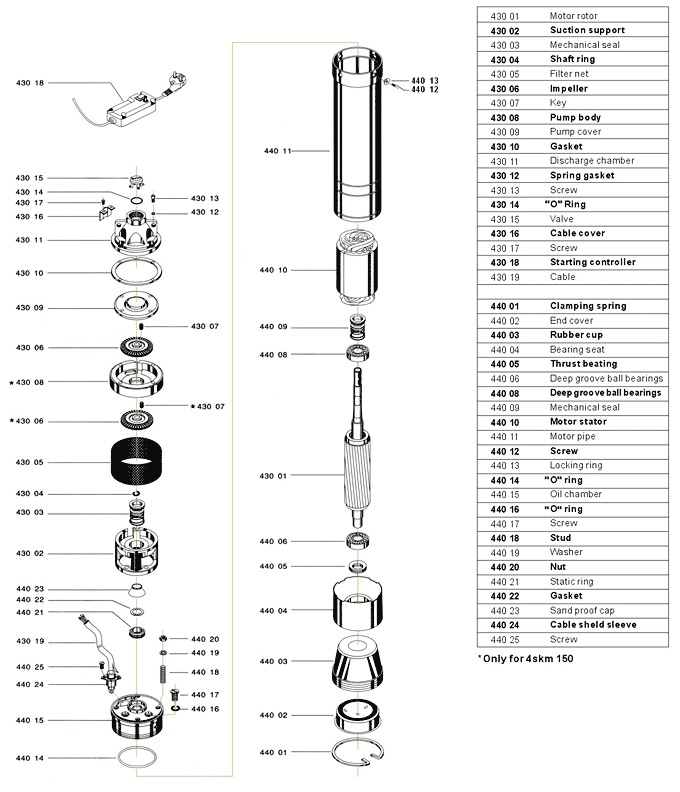

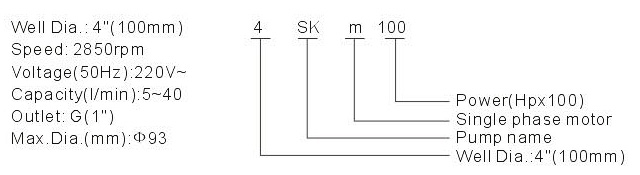

The Structure, code and name of the pump
