 Your Location: Home -> Products -> Stainless Steel Pump |
|
| |

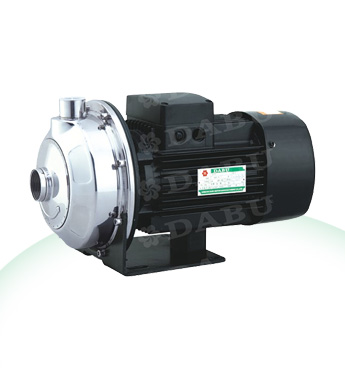

MSB (Stainless Steel Horizontal Single-stage Centrifugal Pump) |
 |
 |
Application |
IPressurization and pumping of industrial and civilian claan water of other liquids.
Water treatment.
Water circulating system.
Agricultural irrigation.
Other fields. |
|
Operating condition |
Liquid temperature:-10¡æ-+85¡æ
Ambient temperature:up to +40¡æ
Altitude:up to 1000m
Max. Pressure of the system is & bar |
|
Motor |
TEFC motor:2-pole
Protection class:IP55
Insulation class:F
Standard voltage:
50Hz 1x220V
3x380V/3x220V |
|
|
Structure features |
MSB series of pump is single-stage centrifugal pump and features axial suction and radial discharge.
Compact structure, the pump is directly connected with the motor, coaxial installation.
Convenient installation, screw thread water inlet and outlet.
Light weight, thin plate pressing structure for main parts and components.
Corrosion resistance, components passing the flow use AISI 304 or AISI 316 stainless steel. |
 |
|
|
