 Your Location: Home -> Products -> Stainless Steel Sewage Pump |
|
| |

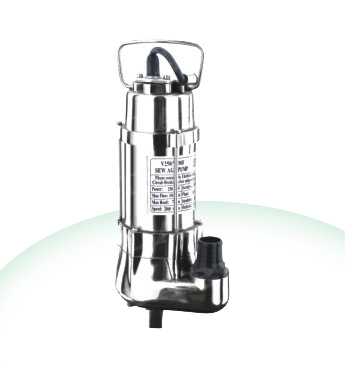

VN180 (VN(WQ) Model of Stainless Steel Draina GE Submersible Sewa GE Pump) |
 |
 |
Function And Feature: |
| |
Model VN is a kind of standing stainless submersible pump which is founded on ISO11. Then adoption of swirling flow style bottom suction structure and the unique flow passage design provide it with wide efficient area of the lift and downright drainage, VN180 and VN250 are suitable for the transportation of mine enterprises, construction sites, breed aquatics industry, fluid drug, drink, seawater and solids whose diameter is no bigger than 15mm. VN750 is suitable for the transportation of mine enterprises, construction sites, breeed aquatics industry, fluid drug, drink, seawatera and solids whose diameter is no bigger than 25mm. VN1500 is suitable for the transportation of mine enterprises, coonsructio sites, breedaquatics industry, fluid drug,drink, seawaterand solids whose diameter is no bigger than 10mm. The protector in the motor can automatically cut off the power when it is overheated or overcurrrented, thus guarantee the security and reliability of pump¡¯s operationeven in the artocious environment. |
|
|
Condition of Usage: |
| |
1.The maximum deep it is allowed in water is 5m from its center of impeller;
2.The trans medium¡¯s temperature shouldn¡¯t be higher than 40¡æ;
3.Kinematics viscosity of the trans mediumis:7x10-7-23x10-6m2/s;
4.Density of the trans medium limit:1.2x103kg/m3. |
|
Technical Data: |
 |
|
|
