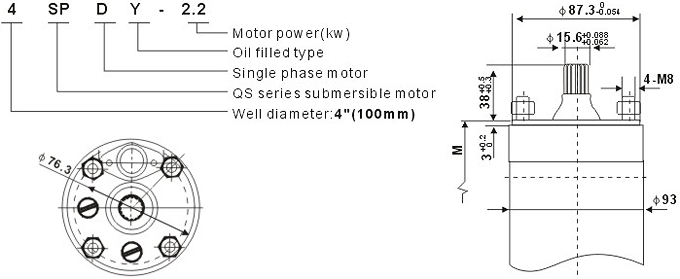

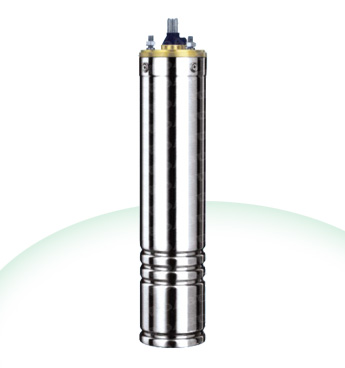

4SP (4SP Series Oil-filled Type Single Phase Submersible Motor) |
 |
 |
Technical data: |
| |

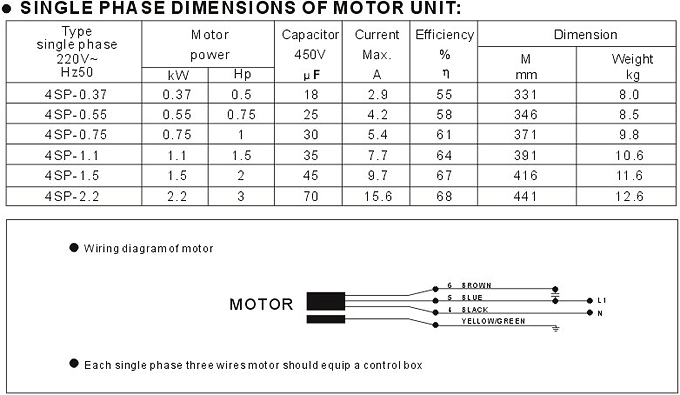

-Motor
Single phase motor:0.37 to 2.2kW
Speed:2850rpm
Voltage:220V-240V-/50Hz
Insulation class:B
Protection grade:IP58
Highest temperature of liquid:40¡æ
Maximum content of solid substance:40gr/m3
Flange and coupling according to NEMA standard
Motor casing:stainless AISI304
With sandproof cover/pressure balance membrane/mechanical seal with high performance. |
|
|
